Configuring EIAs Using EZView Widget

<< Click to Display Table of Contents >>

Navigation:  Enterprise > EQuIS Information Agents >

Configuring EIAs Using EZView Widget

Steps to Create a New EIA: Open the EIA Editor, Modify or Create New EIA, Enable Agent (EIA), Select Delivery Method

Scheduling: New Data (EDD), Once, Recurring (Daily, Weekly, or Monthly)

Delivery Methods: Email Notice, Webhook



EQuIS Information Agents (EIAs) are created and configured using either the EIA Editor within the Widget Editor for the EZView widget. as described in this article, or the EIA Wizard from the EIA widget. See the EIA Wizard article if using the EIA Widget.



Note: Existing EIAs may only be edited by the original creator of the EIA or by an Administrator.



If the original EIA creator needs to be disabled, we recommend changing the user ID associated to the EIA in ST_REPORT_EVENT.USER_ID to point to an active and licensed user. Refer to the ST_USER system table to find USER_IDs.





Create New EIA – Step 1: Open the EIA Editor



Note: A saved user report Ent-User_Report-Icon must be chosen to proceed. Only user reports (whether created in EQuIS Professional or Enterprise), as opposed to base/system reports Ent-System_Report, will work with EIAs.



Open the Widget Editor by selecting the More Options Ent-More_Options-Icon icon in the upper right corner of the EZView widget, then select Edit.



Choose a user report to use with the EIA.



Click the EIA Ent-Report_Edit-icon button to open the EIA Editor and set the properties for an EIA for the selected report. There are two tabs on the EIA Editor—the Data tab and the EQuIS Information Agent tab.

Ent-EZView_Widget_Editor





Create New EIA – Step 2: Modify or Create New EIA



The Data tab lists any existing EIAs and provides a means to modify them or create a new EIA. Each EIA is assigned a unique REPORT_EVENT_ID in the ST_REPORT_EVENT table when the EIA is created. The EIA REPORT_EVENT_ID value is displayed before the associated report name for the existing EIAs.

Ent-EIA-Data_Tab

If the user wishes to change the selected report while implementing an EIA, the Data tab provides a link to the Report Chooser and the Report Parameter Editor.



Either select an existing EIA or click the Create new EIA agent radio button to enable the EQuIS Information Agent tab.

Ent-EIA-Data_Tab1





Create New EIA – Step 3: Enable Agent (EIA)



Check the Enable Agent (EIA) for this report check box to enable an EIA for the report. To remove an EIA, uncheck this check box.



The EIA will run the selected report and send the information according to the EIA type and settings. Some settings allow the report to run multiple times, depending on a set schedule or other factors. Note that if the report was supposed to have run at least one time during a period of time, but did not for some reason (such as report generation was disabled in the Workflow Widget properties for that day or time of day), the report will run one time for all the missed times.



Note: For clients using EQuIS Online (hosted), EIA execution times are always in Coordinated Universal Time (UTC).



Once run, the EIA can be configured to deliver an email notification OR to use a webhook to connect to a Uniform Resource Identifier (URI) for an external Web service, such as Microsoft Power Automate, Teams, SharePoint, Logic Apps, etc.



Set EIA Type



Choose which type of agent to use and configure the EIA settings.



New Data (EDD)



Sends a report when a new EDD arrives. There is a short delay of approximately 15 minute between when an EDD is loaded into the database and when an EIA may report on that event. At run time, the values for FACILITY_ID and EBATCH from the EDD are passed to the report, replacing the parameter values saved with the report.

Ent-EZView_EIA-Create_EIA

Once the New Data (EDD) option is selected, the agent can be configured to further limit what EDD information is applicable to the report by clicking on any of the following settings in the Event Info section:

EDDs facility must match Report's facility – If this setting is checked, then the agent will only run if the EDD was loaded to a facility that equals the facility identified in the report's FACILITY_ID parameter or is a member of the group identified by the report. If the report has no FACILITY_ID parameter, the value may be set in the ST_USER_REPORT.FACILITY_ID database field for the report.

Limit report to only data within the EDD (i.e. new data) – If this setting is checked, the generated report will be limited to the data from the submitted EDD. If it is unchecked, the report will be run according to the report parameter settings. This is performed by passing the EDD's ebatch number to the report's EBATCH parameter. If unchecked, the value -1 is passed to the report. The report must support this feature by interpreting -1 to mean that this parameter should be ignored. When this box is unchecked, the generated report will display all data in the EQuIS database and incoming EDD matching the previously defined criteria.



Note: The Limit report to only data within the EDD (i.e. new data) option MUST be selected for "by EDD" reports (e.g., Analytical Results by EDDs) to run as an EIA and return results ONLY from that submitted EDD.



Limit agent to data trigger – Allows definition of a secondary "Trigger Report" to determine if the waiting report, identified on the Data tab, should be run. When an EDD is loaded, the "Trigger Report" is run and limited to only data within the EDD. If the "Trigger Report" returns any results, then a task is created to generate the waiting report. If the "Trigger Report" does NOT return any results, then the waiting report is not run. Since using an existing report as the "Trigger Report" runs the risk of parameters being changed elsewhere, you will need to create a new report to use for this purpose.

To define the "Trigger Report", perform the following steps:

1.Select the type of report from the Define Trigger drop-down list. One option is "Report triggers itself." If this selection is made, no other steps are needed.

2.In addition to the "Report triggers itself" option, a list of available user reports will be displayed. Select the desired report.



Note: The list of available user reports contains all users reports for which a user has permission and the base report has the MAY_TRIGGER_OTHERS_YN field set to “Y” in the ST_REPORT table.



Limit EIA by EDD format – If this setting is checked, the "New Data" EIA will be limited to a specific EQuIS EDD format.  When a new EDD is loaded via Enterprise EDP, the EIA will only be triggered when the EDD type (ST_EDD_BATCH.EDD_TYPE) matches the format name (ST_REPORT_EVENT.FORMAT_NAME) as specified in the drop-down selection.

Limit agent to EDDs from user – Allows users with Administrator permissions to limit an EIA to only run when a specific user submits an EDD.





Once Option



Send the report once (and no recurring event or schedule). This option is useful for generating long running reports that would cause the web browser to abort before completion. There is no auto-delete to remove these agents once the report is generated and delivered.

Ent-EIA-Once-Calendar

Begin schedule on – This is the date and time the schedule will begin to run. This will default to the current date and time. The date/time may be edited using the calendar tool or by entering the date/time manually in the text box. Click the calendar tool icon Ent-Calendar-Icon to use the calendar tool. Note that when entering the date manually in the text box, the date must be in the same format as the current default date. Changing the value in the text box will also update the calendar tool. The calendar shows the selected date highlighted in blue and today's date highlighted in gray. If Today's date is selected in the calendar tool, it will remain highlighted in blue. To select a different month or year using the calendar control, click on the name of the month or the arrow pointing forward at the top of the control. This changes the calendar tool from the month view to the year view. Once in the year view, scroll through the available years as desired. The current selected month will be highlighted in blue. Select the desired month/year combo to return to the month view to pick a specific date. Scroll in the Time pane to select the desired time. Click the Done button to save the selected date and time.



Recurring Events or Schedules



Daily Schedule

Schedule reports on a daily recurrence. Daily recurrences can occur every day or every N days. Daily recurrences schedules may also include a time base recurrence to schedule the report to run multiple times during the day.

Ent-EIA-Daily-Calendar

Daily Schedules are configured as:

Repeat after every ____ day(s) – Entering a positive integer value will result in a schedule that starts at "Begin schedule on" and repeats every N days.

Scheduled Start and End

Begin Schedule On – The date/time the schedule will begin. This is a required field. The hour portion of the time field is corrected from UTC. If "Repeat during the day" is enabled, the time recurrence is relative to this time.

Stop Schedule On – The date/time when the recurrence should end. This field must be enabled by selecting the check box. When null, the recurrence has no end.

Repeat during the day – Schedule the agent to run more than once per day by checking this option.

Repeat after every – These fields are enabled by the above check box. When enabled, the valid range of values is 0 to 23 hours and 0 to 59 minutes.

Repeat during the day until – This option is enabled by the above check box. The hour portion of the time field is corrected from UTC and may represent a time either on the previous day or the following day. The end time must be after "Start Time." The end time will be 11:59 PM or 23:59, local time, by default.



Note: If both the repeat after every hour and minutes text boxes are left blank, repeat after every one minute is assumed.





Weekly Schedule

Create a recurring schedule that repeats on a weekly basis.

Ent-EIA-Weekly

Weekly schedules are configured as:

Weekly Schedule

Repeat after every ___ week(s) – Define a schedule that runs every N weeks. If left blank, then the value one (1) is assumed.

On the following days – Check the box for the day(s) of the week that the agent should run. At least one day must be selected.

Scheduled Start and End

Begin Schedule On – The date/time the schedule will begin. This is a required field. The hour portion of the time field is corrected from UTC. If "Repeat during the day" is enabled, the time recurrence is relative to this time.

Stop Schedule On – The date/time when the recurrence should end. This field must be enabled by selecting the check box. When null, the recurrence has no end.

Repeat during the day – Schedule the agent to run more than once per day by checking this option.

Repeat after every – These fields are enabled by the above check box. When enabled, the valid range of values is 0 to 23 hours and 0 to 59 minutes.

Repeat during the day until – This option is enabled by the above check box. The hour portion of the time field is corrected from UTC and may represent a time either on the previous day or the following day. The end time must be after "Start Time." The end time will be 11:59 PM or 23:59, local time, by default.





Monthly Schedule

Create a recurring schedule that repeats on a monthly basis that occurs every calendar month that is selected. The monthly schedule may also be used for yearly or quarterly recurrence.

Ent-EIA-Monthly

Monthly schedules are configured as:

Monthly Schedule

Months – Select the months that the recurrence may be scheduled. At least one month must be selected.

On Week of Month – Allows a schedule to be setup on a specific week of the month. Note that selecting the "5th" week of a month will not be applicable to every month and the schedule may not run these months.

On the following days – This option is active when the "On Week of Month" option is selected. Check the box for the day(s) of the week that the agent should run. At least one day must be selected. The report will run on the days of the week for that week using the scheduled Start and End settings on that day.

On Calendar Day – Schedule the agent to run on the specified date of the month. This option is mutually exclusive with the "On Week of month" option. Note that some calendar days are not applicable to every month (such as February 30 or 31) and the schedule will not run on these days.

Scheduled Start and End

Begin Schedule On – The date/time the schedule will begin. This is a required field. The hour portion of the time field is corrected from UTC. If "Repeat during the day" is enabled, the time recurrence is relative to this time.

Stop Schedule On – The date/time when the recurrence should end. This field must be enabled by selecting the check box. When null, the recurrence has no end.

Repeat during the day – Schedule the agent to run more than once per day by checking this option.

Repeat after every – These fields are enabled by the above check box. When enabled, the valid range of values is 0 to 23 hours and 0 to 59 minutes.

Repeat during the day until – This option is enabled by the above check box. The hour portion of the time field is corrected from UTC and may represent a time either on the previous day or the following day. The end time must be after "Start Time." The end time will be 11:59 PM or 23:59, local time, by default.



Scheduling Note: Agents are not guaranteed to run at the exact time they are scheduled. The "Workflow Heartbeat" agent runs every minute (by default) and queues Report Generate tasks when an agent should have run at least once since the last time the schedule was evaluated. The report is not actually run until the "Report Generate" agent processes that entry in the queue. Even under ideal conditions, it could be several minutes before the report is actually run. Also, If EQuIS Enterprise Workflow is down for several days then resumes operation, an agent that may have been scheduled to run several times during the outage will be queued to run only once when the operation resumes.





Create New EIA – Step 4: Select Delivery Method



Either enter information for the Notice (Web/Email) that will be used when the EIA sends the notification email OR configure a Webhook as the notification method (see below). Select the desired option and configure settings as appropriate.



Note: The EIA can be configured to send as an email or as a webhook, but not both. If the Webhook tab is populated, the EIA will be treated as a Webhook EIA.



The JSON editor component on the EIA editor Webhook tab will allow JSON validation in the body of a Webhook EIA. Note that the text within each mode is not synchronized.  It is recommended to avoid switching modes while editing. Additionally, all EIAs will load in Plaintext mode, and body text that the user wishes to use in the JSON mode will need to be manually copied over.



Ent-EIA-Email_Notice

Ent-EIA-Webhook





Email Notice Information



Do not create a notice if there are no report results – When this box is checked, a notice will not be created if the EIA runs and no report results are obtained.

Do not send an email to notice recipients – Check this box to turn off notifying EIA recipients by email (restricts EIAs to only web notices).

To – Enter a comma-separated list of email addresses. This field will be pre-populated with the email address of the current user. The email addresses may be other users, but are not required to be. If you enter an email address that does not exist as a user, that user will be created as a Limited User.

Subject – Enter the subject of the notice/email. See Replacement Tags below for additional information.

Attachment – Enter the file name for the attachment and select the desired file type. See Replacement Tags below for additional information.

Output Type – Select output type for the report from the drop-down options.

Message – Enter the body of the notice/email. See Replacement Tags below for additional information.

Replacement Tags – The Subject, Attachment, and Message may contain replacement tags that will be replaced with the run time values.



Webhook Configuration



An EQuIS webhook is a type of EIA that connects to a external Web service, such as Microsoft Power Automate or Logic Apps. Whenever an EIA trigger event occurs (scheduled or new data load), the webhook makes an HTTP request to the URI configured in the webhook. The body of the webhook can be configured to populate with report data.  All report output for webhook EIAs will be formatted as JSON.

HTTP Method – (Required) Select the HTTP method as required by the external web service.  GET and POST are supported.

URI – (Required) Enter the URI of the external web service. An error message will be displayed beneath the URI field if the URI is invalid (i.e., does not begin with http:// or https://, followed by a domain name, and lastly a top level domain. The Save button will also be disabled until a valid URI is entered.

Headers – (Required) A content-type header of application/json is required.  Example:  Header = Content-Type Value = application/json.

To paginate report output, set the Content-Range header equal to the page size.

Example: Content-Range: 100

This will result in the report output being broken up into pages of 100, and each hook request being sent separately with a Content-Range header in the following format "rows x-y/z", where z is the total number of rows in the report, and x and y are the lower and upper bound of the rows in the request.



Note: When opening the editor for a webhook EIA, an "Authorization" header Key field will always display the Authorization value as null for security purposes.

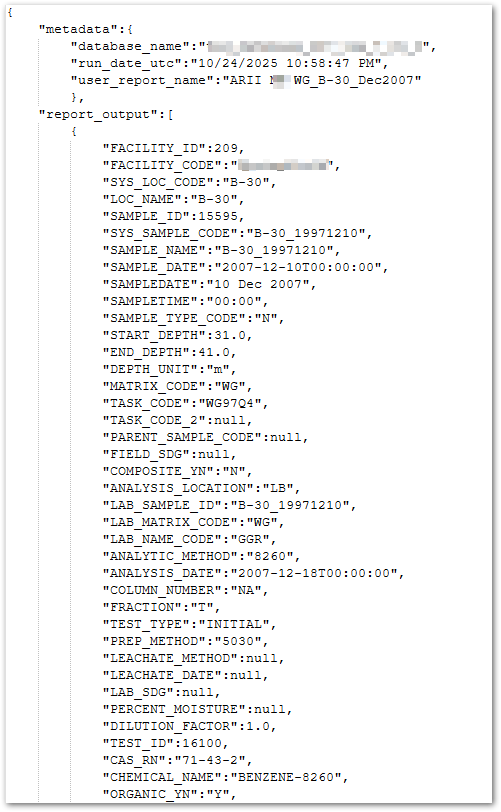

Body – Enter custom message. If left empty, the body will be the EIA's report output.

Edits can be made via either the Plaintext mode or the JSON Editor component, which allows JSON validation in the body of a webhook EIA.  The text within each mode is not synchronized and it is recommended to avoid switching modes while editing.

All EIAs will initially load in Plaintext mode and the user will need to manually copy over any body text that the user wishes to validate in the JSON editor.



When using JSON to configure the body of a webhook, it is possible to set the JSON "data" property value to "DATA_ROW_ARRAY". This will set the "data" property to the EIA's report output.



Example:

{  "template": {     "name":"my-jsreport-template"   },  "data": "DATA_ROW_ARRAY"}



The "data" JSON property is the most used, however, certain software may use other naming conventions for their data property (e.g., "rows" instead of "data" for Power BI). This may result in negative consequences if the "data" property uses "DATA_ROW_ARRAY" for the naming convention instead of “data” (e.g., "DATA_ROW_ARRAY":"DATA_ROW_ARRAY").



Notes:

The Hook Process Agent must be running for Webhook EIAs to process. A Webhook EIA that fails to run will have three opportunities to succeed before it is marked as a failure and a notice is sent to the user that created the Webhook EIA.

If a Webhook EIA fails to receive a successful response from the target resource, an email notice will be sent to the user stating "Hook not delivered. Invalid permissions.". Two potential causes of this are invalid user credentials to the hook's target resource or incorrect permissions configured for the user authenticating the request to the hook's target resource.
