EQuIS for ArcGIS - Labeling Features

<< Click to Display Table of Contents >>

EQuIS for ArcGIS - Labeling Features

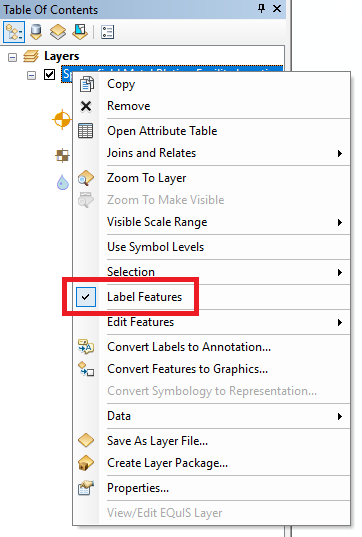

To turn on labels for data points in ArcMap, right-click the EQuIS Locations layer in the Table of Contents and select “Label Features”.



15634_label_features



It is possible to change which field to use as a label when using the EQuIS for ArcGIS interface.

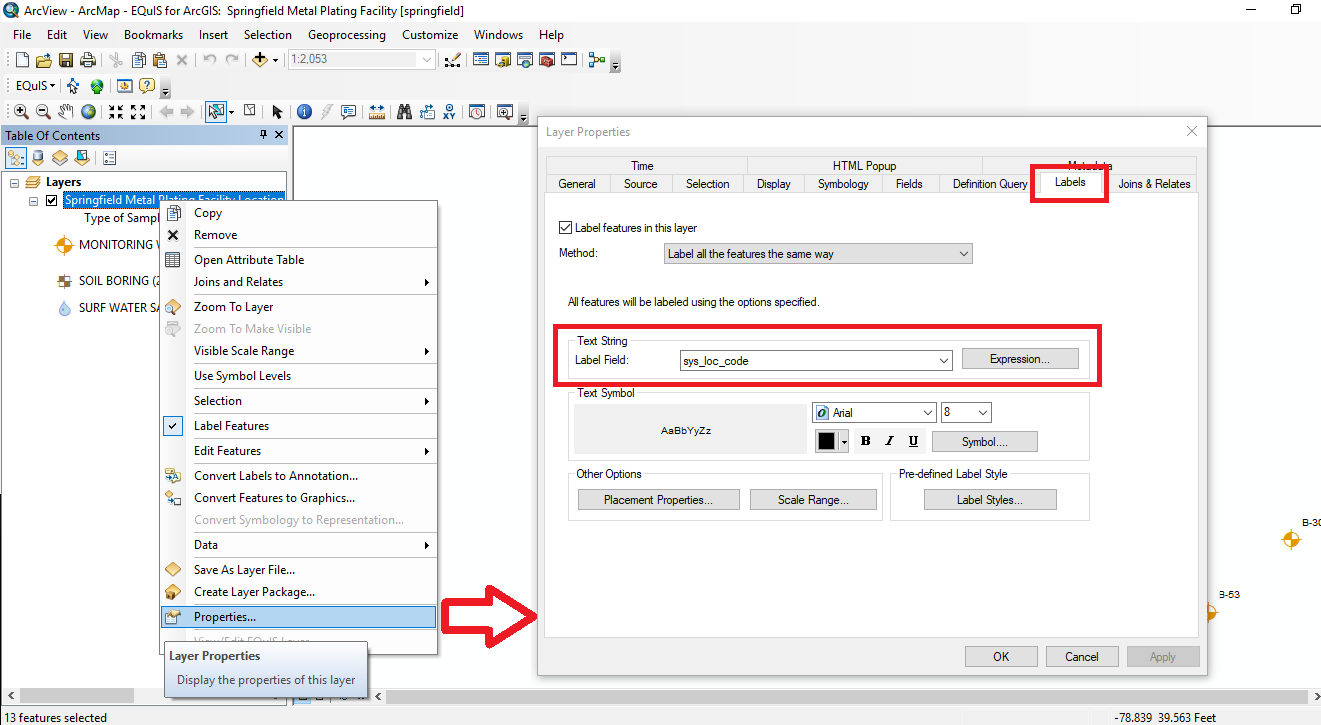

In ArcMap:

1.Right-click the EQuIS Locations layer in the Table of Contents.

2.Select "Properties…".

3.Select the “Labels” tab.

4.Set the “Label Field” to the data field you would like to use for labels.



15634_label_field
