Installation Wizard

<< Click to Display Table of Contents >>

EQuIS 7  >>  Professional > Installation and Administration >

Installation Wizard

This is a step-by-step walk through of the EQuIS Professional Installation Wizard. Steps on changing or repairing an installation of EQuIS are in the help article Installation - Repair or Change.

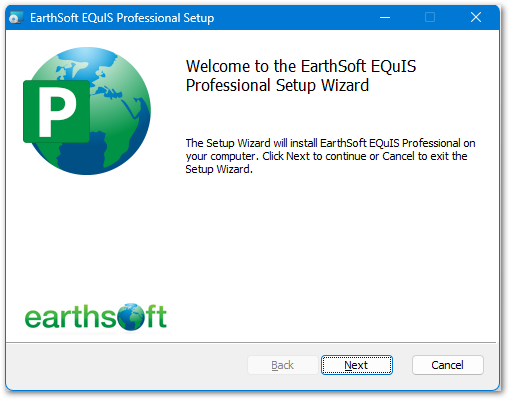

Setup Wizard



Follow the instructions on the EarthSoft EQuIS Professional Setup Wizard screen.



15167-wizard

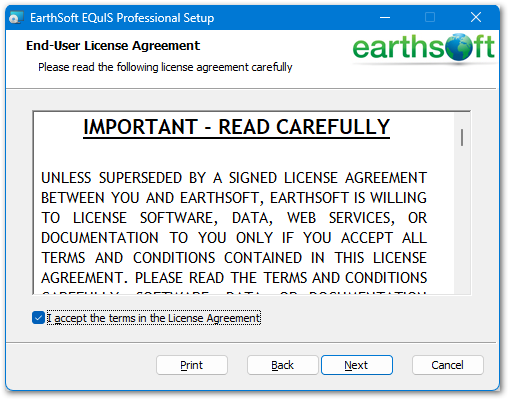

End-User License Agreement (EULA)



15167-install_EULA



Scroll through to read the full agreement. After reading the agreement, select the check box "I accept the terms in the License Agreement" to agree.



Select Next after reading and agreeing to the End-User License Agreement.



Setup Customization



Choose where the application is installed and which, if any, of the optional features are installed in this section of the Setup Wizard.



Install Location



The install location is the location where all of the local components of the EQuIS application will be installed. By default, this location is set to C:\Program Files\EarthSoft\EQuIS\. Click Browse to change this location.



Note: Administrative user permissions on the computer in use are required in order to add or edit files in the Program Files directory.



15167-install_featuresloc

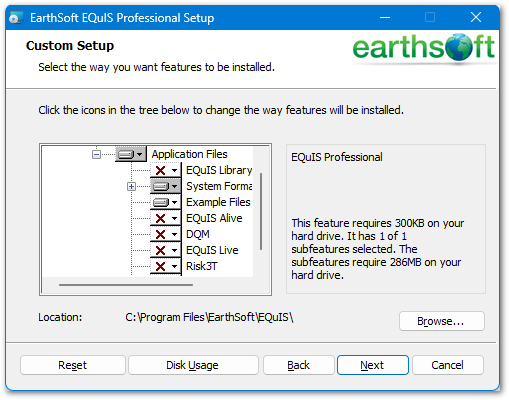

Optional Features



EQuIS Professional 7 contains the following optional features as well as the ability to install the EQuIS Alive, DQM, and Risk3T modules.



EQuIS Library

System Format Files

Tutorial Files

Additional Language Files



Click on a feature to highlight it. Information about the feature is shown in the right pane.



15167-install_featureschoice



Expand the plus (+) sign to the left of a feature to show sub-components. Not all features have subcomponents. The icon in the control box adjacent to the feature name indicates whether the feature is selected to be installed.



entiref

Entire feature will be installed.

partf

Part of the feature will be installed (expand view to see which parts).

nof

Entire feature will be unavailable.



By default, the EQuIS Library, DMR System Format and EuroEDD System Format features will be set to unavailable. Change whether or not a feature is installed by making a selection in the feature's control box. Once the Optional Feature installation is set, continue with the Installation Wizard.



Note: These Optional Features can be added or removed after installation via the Installation Wizard. The Installation Wizard can be opened by clicking on the installer (.msi or .exe) or by selecting EQuIS Professional from the Programs and Features section of the Windows Control Panel and selecting Change>Modify.

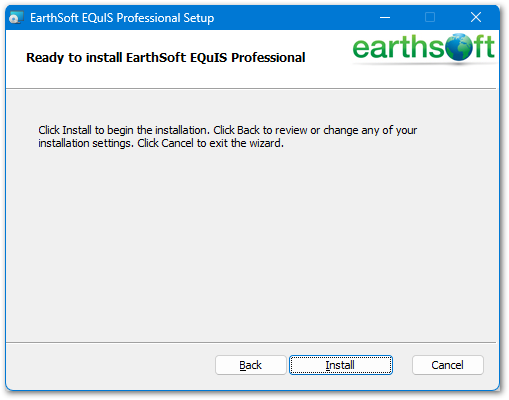

Begin Installation



Begin the installation if you are satisfied with the selections on the previous screens, by following the instructions in the image below.



15167-install_ready
