EQuIS EnviroInsite Connection

EQuIS EnviroInsite (EQuIS EI), is a toolkit for the analysis and visualization of environmental data, and formerly developed by EI LLC as EnviroInsite K'Nect. It is licensed by Earthsoft, Inc. and has multiple capabilities, including creating site maps, analyzing stratigraphy, visualizing environmental data, and preparing report graphics. EQuIS EI connects to an EQuIS Database and directly accesses EQuIS data. More information about EQuIS EnviroInsite is available here.



EQuIS EI provides a direct connection with the EQuIS Database, rather than requiring an export from EQuIS Professional via an intermediate Access Database and then opening the Access Database in EnviroInsite. Much of the functionality remains the same as for previous versions of EI.



EQuIS EI requires an EQuIS EnviroInsite License for each end user. Before using the EQuIS EI functionality, you must add EQuIS EnviroInsite Licenses to your database. These licenses are included in the original EQuIS EnviroInsite purchase, but will require an additional license key. Contact support@earthsoft.com for more information on how to obtain your EQuIS EnviroInsite License.



EQuIS EI can be used with EQuIS Professional and Enterprise. Where it is used with Enterprise, it is not a requirement for EQuIS Professional to be installed locally. For an Enterprise user to connect to the EQuIS Database via EQuIS EI, they must be assigned to an Application Level Security (ALS) role. It is possible for an Enterprise user to have other roles (non-ALS roles), in which case the user could use Enterprise but not Professional/EI. The client could create an "EQuIS EI" role that is specific to users who will be using the program. At the very minimum, the ALS role will need INSERT/UPDATE permissions to the ST_LICENSE_USE table and DB_DATAREADER for the EQuIS Database. See below for the complete list of EQuIS tables used by EI.



EQuIS EI is a 'standalone' installation of EnviroInsite. The program can also be opened directly, using the following application:



15506-EQuIS-EnviroInsite-Connection_icon_EI7



The EnviroInsite shortcut button in EQuIS Professional is located on the Decision Support tab of the ribbon:



15506-EI_Button

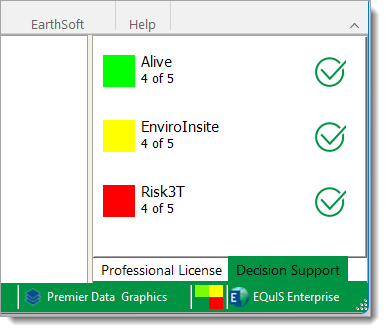

This button may be deactivated upon first connecting to EQuIS. To enable it, click on the license level at the bottom-right of the EQuIS Professional screen (typically Standard upon first logging in), click on the Decision Support tab, and check EnviroInsite. A yellow square will appear in the bottom bar.



15506-EQuIS-EnviroInsite-Connection_DecissionSupport



The connection to the desired EQuIS Database can also be made after opening EQuIS EI. Select File > Open Database > EQuIS Database (shown below) or press the EQuIS button on the taskbar.



15506-EQuIS-EnviroInsite-Connection_menuinEI7



The following is a list of the EQuIS tables used by EQuIS EI, for which the correct permissions will need to be granted for Enterprise users:



DT_WATER_LEVEL

DT_MEASURE_DATUM

DT_FACILTY

DT_SDG

DT_SAMPLE_PARAMETER

DT_WELL

DT_LOCATION

DT_LOCATION_PARAMETER

DT_COORDINATE

DT_LITHOLOGY

DT_SAMPLE

DT_RESULT

DT_TEST

DT_WELL_SEGMENT

DT_ACTION_LEVEL_PARAMETER

DT_ACTION_LEVEL

DT_DOWNHOLE_POINT_DATA



RT_ANALYTE

RT_ANALYTE_DETAIL

RT_DOWNHOLE_POINT_PARAM_TYPE

RT_GROUP_MEMBER

RT_UNIT_CONVERSION

RT_GEOLOGIC_UNIT

RT_LOCATION_TYPE

RT_LOCATION_PARAM_TYPE

RT_MATRIX

RT_WELL_SEGMENT_TYPE

RT_MATERIAL

RT_MTH_ANL_GROUP_MEMBER
