Overview



The EQuIS Migration Tool (EMT), designed to migrate data from one EQuIS database to another, is currently in beta testing. The tool will replace the functionality of the previous Facility Migration Tool, transferring the data associated with a specified facility. EarthSoft plans to finalize the EMT in a future build of EQuIS 7. The EMT (Beta) has been added to the EQuIS_By_Request_Forms_All_[Build].zip package, located in the Downloads Dashboard of the EarthSoft Community Center for an organization's Primary Point of Contact (POC) under Products > Additional Resources > v7.0.



Some improvements of the EMT over the Facility Migration Tool include:

•Removed the requirement in EMT that the “source” and “target” databases have the exact same Schemas applied and that they be updated to the same version.

•Made EMT compatible with Azure SQL.

•Made EMT more robust so that it can handle larger migrations and will not fail as easily during a migration process.



Further transfer options, such as exporting to an interim data file or migrating modules/subsets of data, are planned for a later release.





How It Works

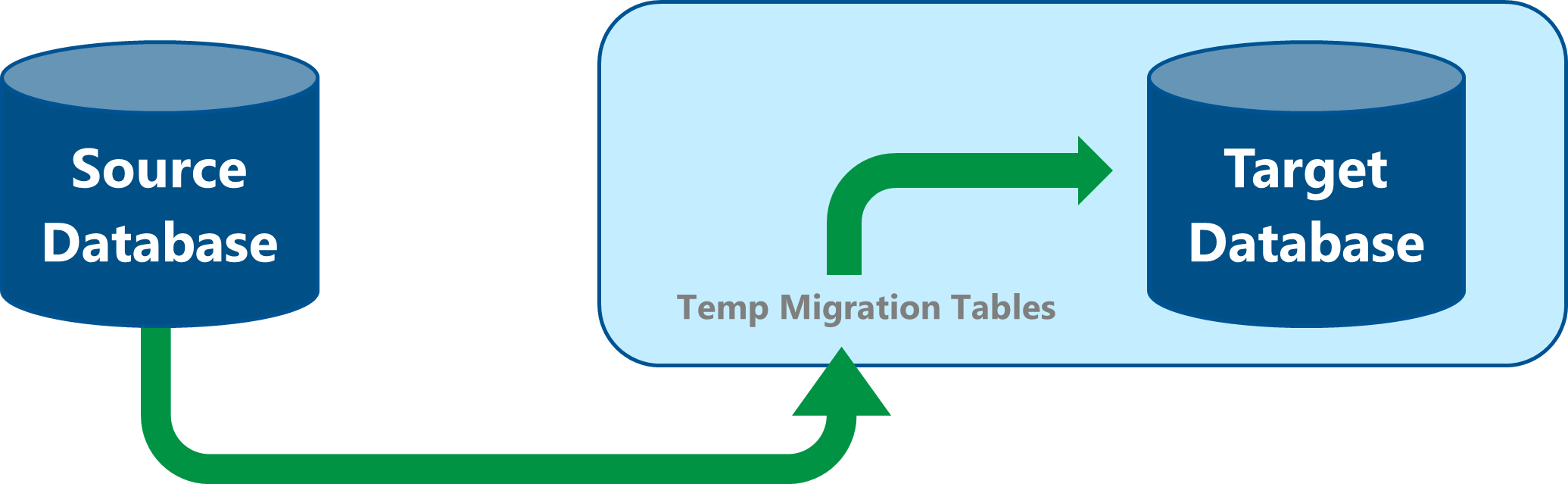

The following diagram illustrates the flow of data from the source database to the target database.







After the user specifies both the source and target databases, the migration process performs the following functions.





Data Tagging for Migration (Source Database)



This process identifies what data will be moved from the source to the target. EQuIS is a relational database with Foreign Keys establishing those relationships. This process starts with the DT_FACILITY table, tagging the single row representing the facility being migrated, then data from associated “children” tables, continuing down the table-tree level by level (from parent to child) until the process has reached the end of the table associations. It then moves back up the table-tree to tag any additional data needed by the “parent” relationship(s), primarily reference table records. It is thus possible to export only the Reference Values needed for the data being migrated.



Certain Reference Tables will bring their children records along during migration. A table showing which Parent Table – Child Table combinations will be migrated together is below:





A few tables in EQuIS do not use Foreign Keys to define their associated data – specifically DT_COST, DT_FILE, DT_GEOGRAPHY, DT_NOTE, and DT_GEO_TEST and related EQuIS Geotech tables. The final step of tagging looks at these special tables to tag any rows with associated data that has already been tagged (based on the column OBJECT_EUID or DB_RECORD_ID). For example, this step would tag a DT_NOTE table record associated with a location in the database.







Data Transfer to Server (Source Database and Separate Target Servers)



After tagging, data are transferred into the temporary tables associated with the target database for validation and final migration into the actual EQuIS tables. Where both the source and target data are accessible to the process, this transfer process is skipped.



The process automatically creates the temp tables based on the same from the source database. Only tables containing data tagged for migration will have a temp table created and have the data transferred. In addition to the EQuIS tables containing the data to be migrated, several temp tables created in the source database will also be transferred as they are used in the validation and final migration processes.





Data Validation



A Schema/data validation process compares the source and target Schemas to identify issues where data from the source database may be lost in the migration or Schema-based requirements of the target database will not allow source data. The validation process then queries the data to determine if an actual problem exists.



The problems that can exist are detailed in the table below, along with how the EQuIS Migration Tool handles those.







Data Migration into EQuIS Tables



The final step in the migration process is populating the EQuIS tables in the target database with the source data in the temp tables.



The system dynamically generates and executes the SQL code necessary to INSERT rows into the target database.



Following is a summary of how this process works:

1.Tables are processed in the order of their ranking with other tables in the database – i.e., tables with no Foreign Keys (required value(s) in certain column(s) match values in the referenced table) are processed first, and then those with Foreign Keys (in order of how many levels deep that table sits). This is necessary to ensure that the parent data are loaded prior to the child data. The VW_TABLE_ORDER view shows the ranking for each table in the database, where a higher rating indicates more dependencies on other tables.

2.New EUID values are assigned for all rows that will be added as new rows in the target database (source EUID values are not valid in the target database).

3.Each row is assigned a number from 1 to n, which is used for batching and to ensure parent data are loaded prior to child data (i.e., self-referencing Foreign Keys).

4.Some triggers can be disabled, which improves processing speed and decreases loading errors. These are re-enabled when all data for a table has been loaded (see notes on disabling triggers below).

5.The loading process is done in batches for performance purposes (see batching process below).

6.A row is added to the ST_EDD_BATCH table for the EQuIS Migration process performed.

7.When the process is complete, statistics for each table are provided with counts of the following:

•Rows from the source database that were planned to be migrated.

•New rows added to the target.

•Errors that occurred in the process.

•Rows that were excluded because of validation issues.

•A downloadable Excel spreadsheet with detailed information about the migration is available by clicking Download All Logs. The detailed migration logs include tabbed worksheets containing a summary of the migration, target and source table information, rows skipped during migration, foreign keys, etc.



Configuration Setting: Batch Size for Data Loading



Data are loaded in batches to improve performance. This can improve performance of the data-load by 10 to 100 times or more. Two batch size options are used:

•Standard – Default of 100,000 rows

•Tables that contain “large binary data” such as DT_FILE – Default of 1,000 rows



These values are stored in the ST_CONFIG table as follows:



The batch size can be specified by changing the STRING_VALUE to a numeric value (i.e., an integer without commas or periods). Other fields in the ST_CONFIG table should not be changed.

Configuration Setting: Disabling Triggers



Certain triggers can be disabled and will be if the login to the database has the permissions to do so. This is done for both performance reasons and to ensure that as much data as possible are loaded. Only triggers like trg_verify_qualifier and trg_require_parent_sample are disabled. Others can be added if needed, or the ability to disable triggers can be disabled completely. By default, the following rows are added to the ST_CONFIG table to control how/what triggers are disabled:





The STRING_VALUE is a pipe-separated (|) list of the trigger names to be disabled. If a trigger is listed, but does not exist in the database, it will be ignored. The OBJECT_TYPE column is optional and allows creating multiple rows and categorizing of triggers if needed. Multiple rows may be necessary, since the STRING_VALUE column has a limit of 2,000 characters.





To prevent triggers from being disabled, replace all rows in the ST_CONFIG table for this option with one row where STRING_VALUE is either blank or contains something is not a trigger, like in the table below.







EQuIS Migration Tool Limitations



There are some limitations to using the beta EQuIS Migration Tool, as detailed in the table below. To increase the likelihood of success, consider doing the following:

•Back up the target database prior to migration.

•For point-in-time database backups, note the time prior to initiating the migration.

•Perform migrations into a test (not production) database first.

•Create a RefVals EDD with appropriate reference values to migrate into the target database prior to migration.

•Facility-specific reference value EDDs should be loaded following migration, as the target FACILITY_ID cannot be filled in until after it has been created by the EQuIS Migration Tool.

•Add groups and action levels for the facility after the migration via EDD.
