Table Tab Groups

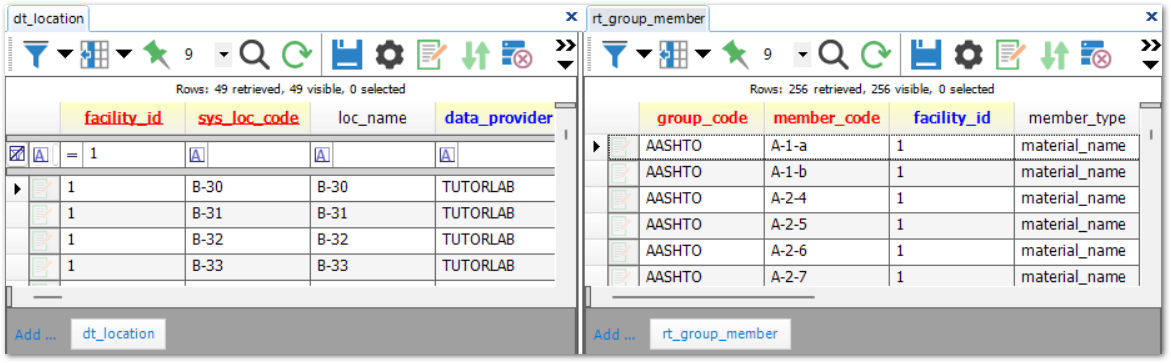

Users can change layout groups of opened tables in EQuIS Professional by right-clicking on the tab that contains the name of the table. Tabs can be laid out as a Horizontal Tab Group or a Vertical Tab Group.



Table Tab Group Example



1.Open DT_LOCATION by clicking the Data Tables button from the open dialog box.

2.Open RT_GROUP_MEMBER by clicking the Reference Tables button from the Open Dialog box to set default filter preferences.



Note: Clicking the Tables Tables-Table button in the Open section of the Home ribbon will open the Open Dialog box.



3.Right-click the RT_GROUP_MEMBER tab in the EQuIS workspace, and select New Horizontal Tab Group.

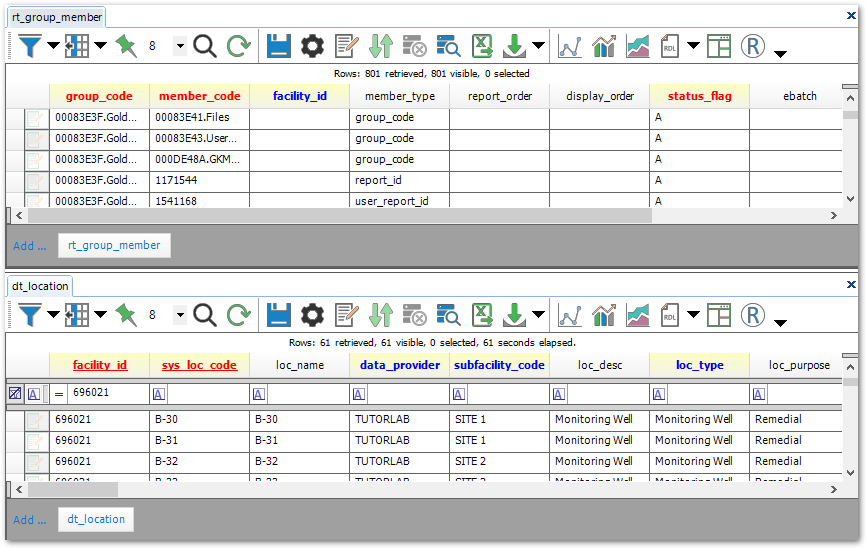

15267-HorizontalTabGroup



Results of Table Tab Group Changes



15267-horizontaltabgroup2_zoom68
