Agent - Configuration Settings Report

Report Name: Agent - Configuration Settings (example1, example2)

File Name: EarthSoft.Reports.Agent.ConfigurationSettings.dll

Dependencies: N/A

Software: EQuIS Professional and EQuIS Enterprise

Source: EQuIS Professional install

Language: English

Output Type: Report Grid1

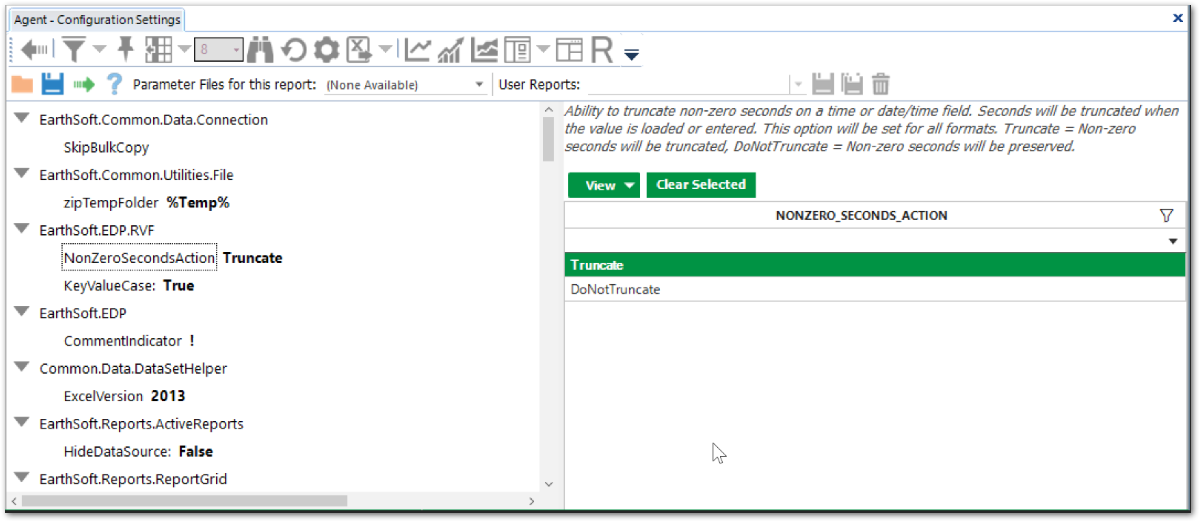

Description: This report allows users to configure a variety of ST_CONFIG table settings. When run, changes to the ST_CONFIG table are output in a report grid. If a row is unable to be modified or created, error details are output to the “error” column of the failing row.

Notes:

•The agent is only for administrators. Database records cannot be added if the user does not have INSERT permission for the ST_CONFIG table. Database records cannot be edited if the user does not have UPDATE permission for the ST_CONFIG table.

•When published, a parameter's Data_Source and Default_Value can be modified during publishing.

•Reverting to default parameters can be accomplished by republishing the report DLL file.

•Parameter descriptions are translated, but once published, descriptions default to the value stored in ST_REPORT_PARAMETER.REMARK.

•Settings are persisted in the DT_FILE table as "ConfigurationSettings.xml".

•New settings (shipped with future updates) are added to the ConfigurationSettings.xml file through publishing the Agent Report or installing a new deployment of EQuIS Professional.

Installation Instructions: This report assembly is part of the EQuIS Professional installation. For use with EQuIS Enterprise, publish the report to the database. No additional installation steps are necessary.

Tables: DT_FILE, ST_CONFIG, ST_REPORT_PARAMETER

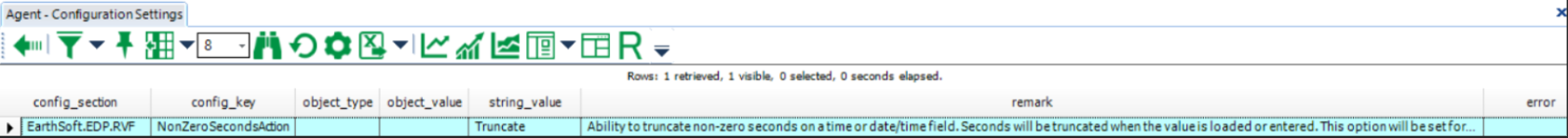

Report Output
CONFIG_SECTION
CONFIG_KEY
OBJECT_TYPE
OBJECT_VALUE
REMARK
ERROR

1The Report Grid provides additional export options to Excel, Google Earth, Outlook, Shapefile, PDF, Text, Access, XML, or a printer.
