Action Level Exceedance - Display Formatting

<< Click to Display Table of Contents >>

Navigation:  Professional > Reports > Crosstab Reports > Formatting >

Action Level Exceedance - Display Formatting

Warning Level / Action Level Multi-Colored Shading Example

Advanced Action Levels

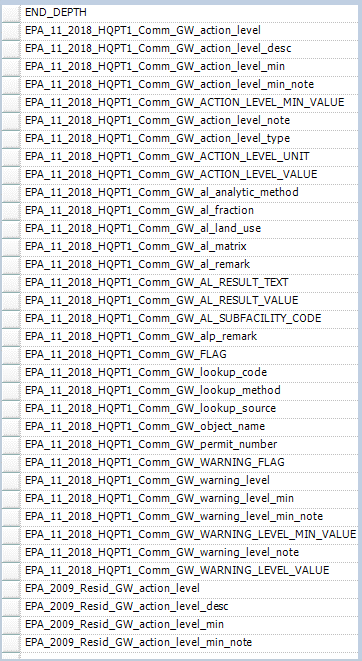

When an Action Level Exceedance (ALE) Report is sent to the Crosstab Report Builder, the Available Columns list includes the action/warning level columns with the Action Level Code(s) appended to the front of each column name. The list below shows the EPA_11_2018_HQPT1_Comm_GW Action Level as an example, with the beginning of the list for the EPA_2009_Resid_GW Action Level:



xtab_report_bldr_avail_columns


Add the desired action level(s) and/or warning level(s) to the Row or Column Header(s).

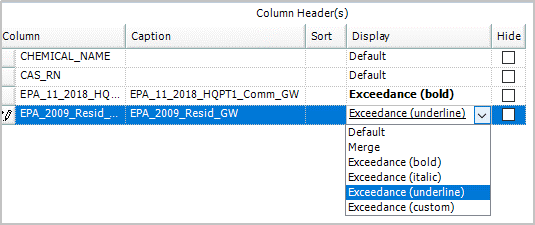

ALE_column_row_header_display


To apply highlighting of exceedances, click on the Display drop-down for the target action/warning level(s), and choose from:



the standard options for Exceedance:

bold

italic or

underline

or select Exceedance (custom) to use differences in:

Background Color or

Foreground Color,

or to select a combination of highlighting for a single Action Level.



Note that the standard format options (bold, italic, underline) can be combined in a single-cell display if more than one Action Level is exceeded, whereas only the Background Color or Foreground Color of the last Action Level exceeded can be displayed when there is more than one exceedance.



For Exceedance (custom) settings, the Set Custom Exceedance Appearance dialog will appear.



Expand the Font list to see the Bold, Underline, Italic, and other options. Choose True to set a desired option.

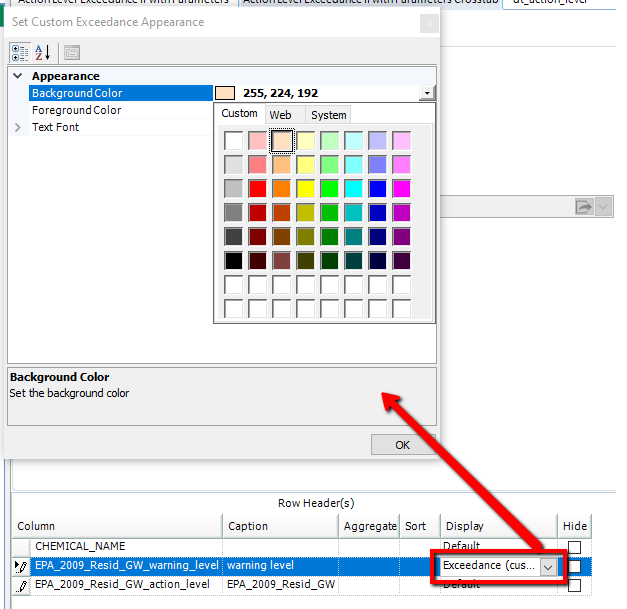

Click the drop-down arrow to the right of BackgroundColor or ForegroundColor to select a custom color.



ALE_bkgrnd_color



Warning Level / Action Level Multi-Colored Shading Example

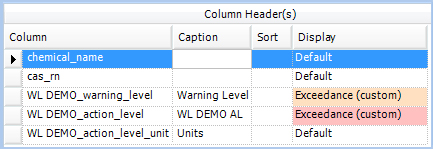

15382-add_exceedance



In this example, the warning level is less than the action level, so exceedance results will be highlighted in the warning level's color of shading when only the warning level is exceeded, and with the action level's color of shading if both levels are exceeded.

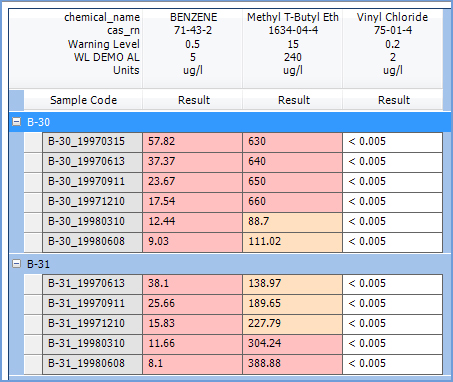

ALE_outputexample



For the shading to work properly in the example above, the warning level must be listed first in the Column or Row Header(s). This is not necessary when selecting the standard format options (bold, italic, underline), which can be combined in a single-cell. Read more about the column header custom coloring feature.



Advanced Action Levels

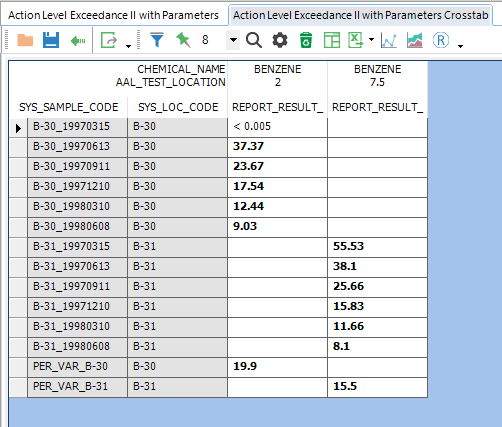

When using Advanced Action Levels, the SAME Action Level can return two or more values. In this case, the Crosstab will create a new column for each new value.



AAL_xtab_new_colum
