Set Absolute X/Y Axis Scale

Set the maximum and minimum values for X and Y axis scale bar in the XY Chart by following the steps below.

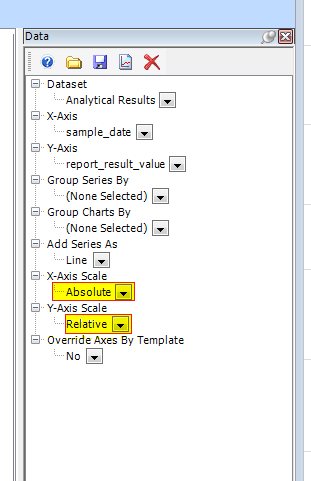

1.Select Data Tab in the XY Chart.

2.Set XAxis Scale or YAxis Scale \ Absolute.



Absolute_Relative Axes

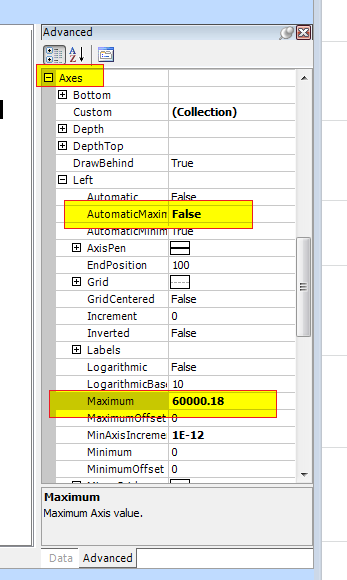

3.Set a specific maximum or minimum axis value in the Advanced tab in the XY Chart by selecting "Advanced/Axis/Left/Set Automatic Maximum" = False and "Automatic Minimum" = False.



Advanced Graphing Tab_Axis



4.Enter the desired absolute value.
