Active Reports - Adding Column Headers to Body of Report

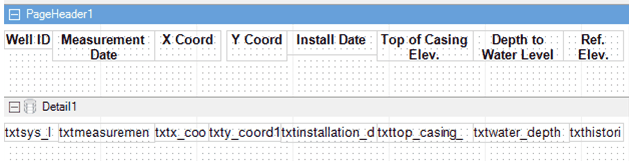

1.From the Report Designer Toolbar, select TextBox.

2.Your cursor will appear as a crosshair. In the PageHeader1 area, take your cursor and draw a box above the SYS_LOC_CODE field in the Detail1 section.

3.Double-click on the box.

4.Notice the Report Explorer changes to the Properties tab, displaying the text box properties:

a.In the Data section, enter Well ID in the text field.

b.In the Appearance section, expand Font and set Bold to True.

c.Set the Alignments to Center.

5.Repeat Steps 1-4 for each of the column headers in the report.



Tip: You can also change the text within each field by using the font selections on the toolbar.
