Action Level Types

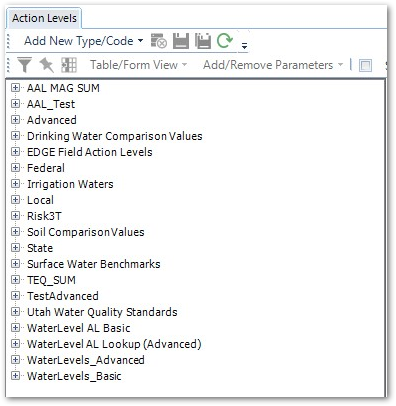

The Action Level Types pane lists action levels by type and is on the left side in the Action Levels window. Action level types can be general such as Federal, State, and Local or they can be more specific such as an agency or program name.



15004-Action_Level_types



Select Add Action Level Type from the Add New Type/Code drop-down to add a new action level type. This will add a record to RT_ACTION_LEVEL_TYPE.



15004-Action_Level_types_add



When the Show Action Levels for All Facilities check box is unchecked, only action levels with the current Facility Id are displayed.



15004-Action_Level_all_fac_checkbox



When the Show Action Levels for All Facilities check box is checked, action levels with the current Facility Id and action levels with no Facility Id are displayed.



15004-Action_Level_all_fac_checkbox2
